当前位置：首页>产品展示

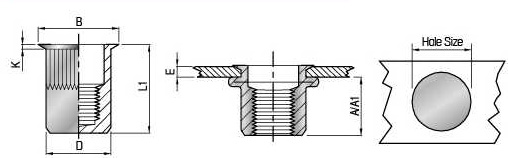

小头条纹（盲孔）
| UNIT(单位): | mm R=neduce/ H=Hea(v K=Knuried/ B=Bodyz C=Close/ S=Steel | |||||||
| 螺纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | A Ref | Hole Size +0.1 0 | D 40.07 -0.1 | B | K ±0.15 | L ±0.30 |
| M4 | RH-KBC-0420 | 0.520 | 11.0 | 6.0 | 59 | 70 | 0.6 | 15.0 |
| RH-KBC-0440 | 2.0-4.0 | 16.5 | ||||||
| M5 | RH-KBC-0520 | 0.5-2.0 | 12.5 | 7.0 | 6.9 | 8.0 | 0.6 | 16.5 |
| RH-KBC-0540 | 2.0-4.0 | 18.0 | ||||||
| M6 | RH-KBC-0625 | 0.525 | 15.5 | 9.0 | 8.9 | 10.0 | 0.7 | 20.5 |
| RH-KBC-0640 | 2.5-4.0 | 22.0 | ||||||
| M8 | RH-KBC-0830 | 0.5-3.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.75 | 23.0 |
| RH-KBC-1050 | 3.0-5.0 | 24.5 | ||||||
| M10 | RH-KBC-1035 | 1.0-3.5 | 18.2 | 13.0 | 12.9 | 14.0 | 0.8 | 24.5 |
| RH-KBC-1060 | 3.5-6.0 | 26.0 | ||||||
