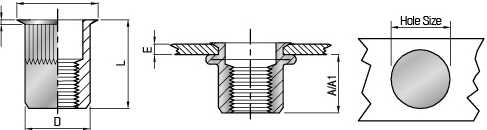

小头条纹
| I UNIT(单位): | mm R=Reduce/ H=Head/ K=Knurled/ B=Body/ S=Steel I | |||||||
| ,纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX |
|
Hole Size +0.1 0 | D +0.07 -0.1 | B | K ±0.15 | L ±0.30 |
| M3 | RH-KB-0315 | 051.5 | 6.2 | 5.0 | 4.9 | 6.2 | 0.6 | 9.0 |
| RH-KB-0325 | 152.5 | 6.2 | 5.0 | 4.9 | 6.2 | 0.6 | 10.0 | |
| M4 | RH-KB-0420 | 0.5-2.0 |
|
6.0 | 5.9 |
|
0.6 | 11.0 |
| RH-KB-0440 | 2.0-4.0 | 7.0 | 7.2 | 13.0 | ||||
| M5 | RH-KB-0520 | 052.0 | 7.0 | 7.0 | 6.9 | 8.2 | 0.6 | 11.5 |
| RH-KB-0535 | 2.0-3.5 | 13.0 | ||||||
| M6 | RH-KB-0625 | 0.5-2.5 | 8.5 | 9.0 | 8.9 | 10.3 | 0.7 | 14.0 |
| RH-KB-0650 | 2.5-5.0 | 17.0 | ||||||
| M8 | RH-KB-0830 | 0.5-3.0 | 10.0 | 11.0 | 10.9 |
|
0.7 | 16.5 |
| RH-KB-0850 | 3.0-5.0 | 12.2 | 18.5 | |||||
| M10 | RH-KB-1030 | 0.5-3 0 | 12.5 | 13.0 | 12.9 | 14.2 | 0.8 | 19.5 |
| RH-KB-1060 | 3.0-6.0 | 22.0 | ||||||
| RH-KB-1040(12H) | 1.0-4.0 | 12.0 | 11.9 | 13.0 | 0.8 | 19.5 | ||
| M12 | RH-KB-1230 | 153.0 | 14.0 | 15.0 | 14.9 | 16.2 | 0.9 | 22.0 |
| RH-KB-1230(16H) | 1.5-3.0 | 16.2 | 16.0 | 15.9 | 17.6 | 0.9 | 24.2 | |
