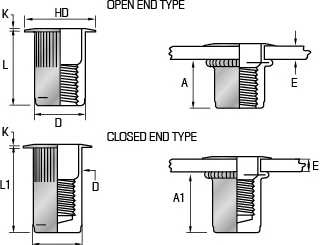

小头条纹碳钢-美标
| UNIT(单位) | :mm |
|
R=Reduce/ H=Head/ K=Knuried/ B=Body/ S=Steel | |||||
| !«纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | A Ref | Hole Size +0.10 0 | D +0.07 -0.10 | B | K ±0.15 | L ±0.30 |
| M4 | AKS-04M-20 | 0.5-2.0 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 11.3 |
| AKS-04M-35 | 2.5-3.5 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 12.5 | |
| M5 | AKS-05M-30 | 0.5-3.0 | 7.2 | 7.6 | 7.40 | 8.7 | 0.5 | 12.5 |
| AKS-05M-55 | 3.5-5.5 | 6.2 | 7.6 | 7.40 | 8.7 | 0.5 | 15.4 | |
| M6 | AKS-06M-30 | 0.7-3.0 | 9.2 | 10.0 | 9.80 | 11.5 | 0.6 | 15.3 |
| AKS-06M-60 | 3.5-6.0 | 8.2 | 10.0 | 9.80 | 11.5 | 0.6 | 17.8 | |
| M8 | AKS-08M-35 | 0.7-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 |
| AKS-08M-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | |
| M10 | AKS-10M-35 | 0.7-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 |
| AKS-10M-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | |
| ,纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX |
|
Hole Size +0.10 0 | D +0.07 -0.10 | B | K ±0.15 | L ±0.30 |
| 6-32UNC | AKS-6-32-20 | 0.5-2.0 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 11.3 |
| AKS-6-32-35 | 2.5-3.5 | 72 | 6.75 | 6.65 | 7.9 | 0.5 | 12.5 | |
| 8-32UNC | AKS-8-32-20 | 0.5-2.0 | 7.2 | 6.75 | 6.65 | 7.9 | 0.5 | 11.3 |
| AKS-8-32-35 | 2.5-3.5 | 72 | 6.75 | 6.65 | 7.9 | 0.5 | 12.5 | |
| 10-24UNC | AKS-10-24-30 | 0.5-3.0 | 7.2 | 7.6 | 7.40 | 87 | 0.5 | 12.5 |
| AKS-10-24-55 | 3.5-5.5 | 6.2 | 7.6 | 7.40 | 8.7 | 0.5 | 15.4 | |
| 10-32UNF | AKS-10-32-30 | 0.5-3.0 | 7.2 | 7.6 | 7.40 | 87 | 0.5 | 12.5 |
| AKS-10-32-55 | 3.5-5.5 | 6.2 | 7.6 | 7.40 | 8.7 | 0.5 | 15.4 | |
| 1/4-20UNC | AKS-1/4-20-30 | 07-3.0 | 9.2 | 10.0 | 9.80 | 11.5 | 0.6 | 15.3 |
| AKS-1/4-20-60 | 3.5-6.0 | 8.2 | 10.0 | 9.80 | 11.5 | 0.6 | 17.8 | |
| 5/16-18UNC | AKS-5/16-18-35 | 07-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 |
| AKS-5/16-18-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 | |
| 3/8-16UNC | AKS-3/8-16-35 | 07-3.5 | 10.6 | 13.5 | 13.38 | 15.1 | 0.7 | 18.2 |
| AKS-3/8-16-80 | 4.0-8.0 | 9.6 | 13.5 | 13.38 | 15.1 | 0.7 | 21.2 |
