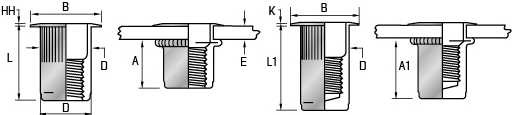

大头条纹碳钢-美标
| UNIT(单位) | :mm | F=FLAT/ H=Head/ K=KnuriedZ B=Body/ S=Steel/ LM=BUND | ||||||
| 螺纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | 畠 | Hole Size +0.10 0 | D 40.07 -0.10 | B | K ±0.15 | L ±0.30 |
| M4 | ALS-04M-20 | 0.5-2.0 | 7.75 | 6.75 | 6.73 | 9.91 | 0.76 | 10.67 |
| ALS-04M-33 | 2.0-3.3 | 7.75 | 6.75 | 6.73 | 9.91 | 0.76 | 11.94 | |
| M5 | ALS-05M-33 | 0.5-3.3 | 8.0 | 7.6 | 7.52 | 10.59 | 0.76 | 12.07 |
| ALS-05M-57 | 3.3-57 | 8.0 | 7.6 | 7.52 | 10.59 | 0.76 | 14.86 | |
| M6 | ALS-06M-42 | 07-4.2 | 9.65 | 10.0 | 9.91 | 12.7 | 0.76 | 14.73 |
| ALS-06M-66 | 4.2-6.6 | 9.65 | 10.0 | 9.91 | 127 | 0.76 | 17.27 | |
| M8 | ALS-08M-38 | 07-3.8 | 11.94 | 13.5 | 13.46 | 17.4 | 0.89 | 17.53 |
| ALS-08M-79 | 3.8-79 | 10.8 | 13.5 | 13.46 | 17.4 | 0.89 | 20.45 | |
| M10 | ALS-10M-38 | 07-3.8 | 11.94 | 13.5 | 13.46 | 17.4 | 0.89 | 17.53 |
| ALS-10M-79 | 3.8-79 | 10.8 | 13.5 | 13.46 | 17.4 | 0.89 | 20.45 | |
| M12 | ALS-12M-51 | 1.6-5.1 | 21.59 | 17.45 | 17.4 | 21.97 | 1.19 | 29.21 |
| ALS-12M-89 | 5.1-8.9 | 21.59 | 17.45 | 17.4 | 21.97 | 1.19 | 33.02 | |
| ALS-12M-127 | 8.9-12.7 | 21.84 | 17.45 | 17.4 | 21.97 | 1.19 | 36.83 | |
| ,纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | 3 | Hole Size 40.10 0 | D +0.07 -0.10 | B | K ±0.15 | L ±0.30 |
| 6-32UNC | ALS-6-32-20 | 0.5-2.0 | 7.5 | 6.75 | 6.65 | 10 | 0.74 | 11.5 |
| ALS-6-32-35 | 2.5-3.5 | 7.5 | 6.75 | 6.65 | 10 | 0.74 | 12.7 | |
| 8-32UNC | ALS-8-32-20 | 0.5-2.0 | 7.5 | 6.75 | 6.65 | 10 | 0.74 | 11.5 |
| ALS-8-32-35 | 2.5-3.5 | 7.5 | 6.75 | 6.65 | 10 | 0.74 | 12.7 | |
| 10-24UNC | ALS-10-24-30 | 0.5-3.0 | 7.5 | 7.6 | 7.40 | 10.5 | 0.74 | 12.8 |
| ALS-10-24-55 | 3.5-5.5 | 6.5 | 7.6 | 7.40 | 10.5 | 0.74 | 15.5 | |
| 10-32UNF | ALS-10-32-30 | 0.5-3.0 | 7.5 | 7.6 | 7.40 | 10.5 | 0.74 | 12.8 |
| ALS-10-32-55 | 3.5-5.5 | 6.5 | 7.6 | 7.40 | 10.5 | 0.74 | 15.5 | |
| 1/4-20UNC | ALS-1/4-20-30 | 0.7-3.0 | 9.5 | 10.0 | 9.80 | 12.7 | 0.74 | 15.5 |
| ALS-1/4-20-60 | 3.5-6.0 | 8.5 | 10.0 | 9.80 | 12.7 | 0.74 | 18.0 | |
| 5/16-18UNC | ALS-5/16-18-35 | 0.7-3.5 | 11 | 13.5 | 13.38 | 17.5 | 0.90 | 18.5 |
| ALS-5/16-18-80 | 4.0-8.0 | 10 | 13.5 | 13.38 | 17.5 | 0.90 | 21.5 | |
| 3/8-16UNC | ALS-3/8-16-35 | 0.7-3.5 | 11 | 13.5 | 13.38 | 17.5 | 0.90 | 18.5 |
| ALS-3/8-16-80 | 4.0-8.0 | 10 | 13.5 | 13.38 | 17.5 | 0.90 | 21.5 | |
| 1/2-13UNC | ALS-1/2-13-50 | 1.5-5.0 | 20.5 | 17.45 | 17.35 | 22 | 1.2 | 30.5 |
| ALS-1/2-13-90 | 5.0-9.0 | 20.5 | 17.45 | 17.35 | 22 | 1.2 | 34.5 | |
| ALS-1/2-13-127 | 9.0-12.7 | 20.5 | 17.45 | 17.35 | 22 | 1.2 | 38.0 |
