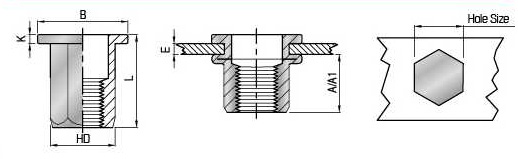

平头全六角（盲孔）
|
|
:mm | F=FlaV H=Head/ F=Full/ H=Hex/ B=Body/ C=Close/ S=Steel | ||||||
| 螺纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | A Ref | +0.1 0 | HD +0.07 ■OJ | B | K ±0.15 | L ±0.30 |
| M4 | FH-FHBC-0420 | 0.5-2.0 | 11.0 | 6.0 | 5.9 | 9.0 | 1.0 | 15.0 |
| FH-FHBC-0440 | 2.0-4.0 | 11.0 | 6.0 | 5.9 | 9.0 | 1.0 | 18.0 | |
| M5 | FH-FHBC-0525 | 0.5-2.5 | 12.5 | 7.0 | 6.9 | 10 | 1.0 | 18.0 |
| FH-FHBC-0550 | 2.5-5.0 | 11.2 | 7.0 | 6.9 | 10 | 1.0 | 20.0 | |
| M6 | FH-FHBC-0630 | 053.0 | 16.7 | 9.0 | 8.9 | 12.7/13.0 | 1.5 | 23.0 |
| FH-FHBC-0650 | 3.0-5.0 | 15.0 | 9.0 | 8.9 | 13.0 | 1.5 | 24.75 | |
| M8 | FH-FHBC-0835 | 1.0-3.5 | 18.5 | 11.0 | 10.9 | 16.0 | 1.5 | 26 |
| FH-FHBC-0855 | 3.5-5.5 | 19.5 | 11.0 | 10.9 | 16.0 | 1,5 | 28.5 | |
| M10 | FH-FHBC-1040 | 1.0-4.0 | 25.0 | 13.0 | 12.9 | 19.0 | 2.0 | 33 |
| FH-FHBC-1055 | 4.0-5.5 | 27.0 | 13.0 | 12.9 | 19.0 | 2.0 | 37 | |
