当前位置：首页>产品展示

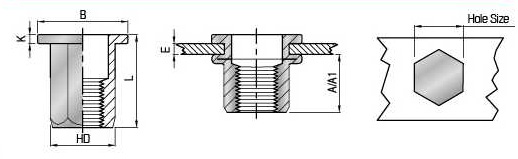

平头全六角
| UNIT■(单位) :mm | F=RaV H=Head/ F=Full/ H=Hex/ B=Body/ S=Steel | |||||||
| 热纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | A Ref | Hole Size *0.1 0 | HD +0.07 -0.1 | B | K ±0.15 | L ±0.30 |
| M4 | FH-FHB-0420 | 0.5-2.0 | 6.5 | 6.0 | 5.9 | 9.0 | 0.8 | 11.0 |
| FH-FHB-0440 | 2.0-4.0 | 7.0 | 6.0 | 5.9 | 9.0 | 0.8 | 13.5 | |
| M5 | FH-FHB-0525 | 0.5-2.5 | 8.0 | 7.0 | 6.9 | 10 | 1.0 | 13.0 |
| FH-FHB-0550 | 2.5-5.0 | 7.5 | 7.0 | 6.9 | 10 | 1.0 | 16.5 | |
| M6 | FH-FHB-0630 | 053.0 | 8.5 | 9.0 | 8.9 | 12.7/13.0 | 1.3 | 15.0/16.0 |
| FH-FHB-0650 | 3.0-5.0 | 10.2 | 9.0 | 8.9 | 13.0 | 1.5 | 19.5 | |
| M8 | FH-FHB-0835 | 1.0-3.5 | 10.2 | 11.0 | 10.9 | 16.0 | 1.5 | 18.0 |
| FH-FHB-0855 | 3.5-5.5 | 11.2 | 11.0 | 10.9 | 16.0 | 1.5 | 21.0 | |
| M10 | FH-FHB-1040 | 1.0-4.0 | 12.5 | 13.0 | 12.9 | 18.0 | 1.7 | 21.0 |
| FH-FHB-1055 | 4.0-5.5 | 13.0 | 13.0 | 12.9 | 18.0 | 1.7/2.0 | 23.0 | |
| FH-FHB-1040(12H) | 1.0-4.0 | 13.5 | 12.0 | 11.9 | 18.0 | 1.7 | 21.0 | |
| M12 | FH-FHB-1250 | 1.0-5.0 | 14.0 | 15.0 | 14.9 | 20.0 | 1.7 | 23.0 |
| FH-FHB-1280 | 5.0-8.0 | 14.5 | 15.0 | 14.9 | 20.0 | 1.7 | 27.0 | |
|
|
FH-FHB-1260(16H) | 2.0-6.0 | 16.5 | 16.0 | 15.9 | 23.0 | 2.0 | 27.0 |
