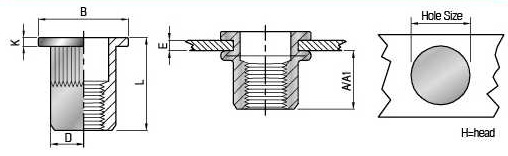

平头条纹
| ■纹 编号 Thread P/N |
T(GRIP RANGE) MIN MAX |
畠 | Hole Size +0.1 0 | D ♦0.07 -0.1 | B | K ±0.15 | L ±0.30 | |
| M3 | FH-KB-0315 | 0.5-1.5 | 6.0 | 5.0 | 4.9 | 8.0 | 0.8 | 9.0 |
| FH-KB-0325 | 152.5 | 6.0 | 5.0 | 4.9 | 8.0 | 0.8 | 10.0 | |
| M4 | FH-KB-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 9.0 | 0.8 | 11.0 |
| FH-KB-0435 | 2.0-3.5 | 12.0 | ||||||
| M5 | FH-KB-0525 | 0.525 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| FH-KB-0540 | 2.540 | 8.5 | 16.5 | |||||
| M6 | FH-KB-0630 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.3 | 1.3 | 15.0 |
| FH-KB-0650 | 3.0-5.0 | 10.5 | 19.5 | |||||
| M8 | FH-KB-0830 | 1.0-3.0 | 11.5 | 11.0 | 10.9 | 14.5 | 1.5 | 18.0 |
| FH-KB-0860 | 3.0-6.0 | 21.0 | ||||||
| M10 | FH-KB-1035 FH-KB-1060 | 1.0-3.5 3.5-6.0 | 13.5 | 13.0 | 12.9 | 17.0 | 1.7 | 21.0 24.0 |
| FH-KB-1035(12H) | 1.0-3.5 | 11.0 | 12.0 | 11.9 | 16.0 | 1.6 | 19.0 | |
| M12 | FH-KB-1240 FH-KB-1265 | 1.0-4.0 4.0-6.5 | 13.5 14.0 | 15.0 | 14.9 | 18.8 | 1.7 | 22.0 |
| 25.0 | ||||||||
| FH-KB-1240(16H) | 1.040 | 15.0 | 16.0 | 15.9 | 22.0 | 2.0 | 25.0 | |
| FH-KB-1070(16H) | 40-7.0 | 16.0 | 28.0 | |||||
