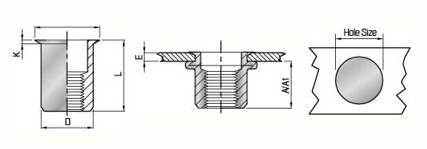

小头圆柱
| UNIT(单位): ,纹 Thread | mm 编号 P/N | T(GRIP RANGE) MIN MAX | 畠 | Hole Size +0.1 0 |
R=Reduce/ H=Head/ R=Round/ B=Body/ S=Steel 各 B 蔦 土ho |
|||
| M3 | RH-RB-0320 | 0.5-2.0 | 6.0 | 5.0 | 4.9 | 6.2 | 0.6 | 9.0 |
| M4 | RH-RB-0420 | 0.5-2.0 | 6.8 | 6.0 | 5.9 | 7.2 | 0.6 | 11.0 |
| RH-RB-0440 | 2.0-4.0 | 13.0 | ||||||
| M5 | RH-RB-0520 RH-RB-0535 | 0.5-2.0 2.0-3.5 | 7.5 | 7.0 | 6.9 | 8.2 | 0.6 | 11.5 13.0 |
| M6 | RH-RB-0625 | 0.5-2.5 | 9.0 | 9.0 | 8.9 | 10.3 | 0.7 | 14.0 |
| RH-RB-0650 | 2.5-5.0 | 17.0 | ||||||
| M8 | RH-RB-0830 | 0.5-3.0 | 10.2 | 11.0 | 10.9 | 12.2 | 0.7 | 16.5 |
| RH-RB-0850 | 3.0-5.0 | 18.5 | ||||||
| M10 | RH-RB-1030 | 0.5-3.0 | 11.2 | 13.0 | 12.9 | 14.2 | 0.8 | 19.5 |
| RH-RB-1060 | 3.0-6.0 | 13.5 | 22.0 | |||||
| RH-RB-1040(12H) | 1.0-4.0 | 12.5 | 12.0 | 11.9 | 13.0 | 0.8 | 18.0 | |
