当前位置：首页>产品展示

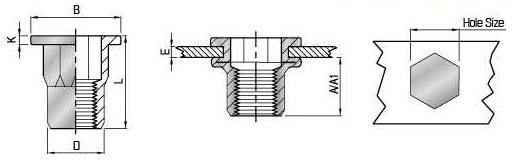

平头内外半六角不锈钢（盲孔）
| UNIT(单位):mm | F=FIat/ H=Head/ IH=lnner hex/ B=Body/ C=Close/ SS=Stainless steel | |||||||
| ,纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | 3 | Hole Size 40.1 0 | D 40.07 -0.1 | HB | K ±0.15 | L ±0.30 |
| M4 | FH-IHBC/SS-0420 | 0.5-2.0 | 12.0 | 6.0 | 5.9 | 9.0 | 0.8 | 17.0 |
| M5 | FH-IHBC/SS-0525 | 0.5-2.5 | 13.5 | 7.0 | 6.9 | 10.0 | 1.0 | 18.5 |
| M6 | FH-IHBC/SS-0630 | 0.5-3.0 | 17.0 | 9.0 | 8.9 | 12.7 | 1.3 | 23.0 |
| M8 | FH-IHBC/SS-0835 | 1.0-3.5 | 19.0 | 11.0 | 10.9 | 16.0 | 1.5 | 27.0 |
| M10 | FH-IHBC/SS-1040 | 1.0-40 | 25.0 | 13.0 | 12.9 | 18.0 | 1.7 | 33.0* |
| M12 | FH-IHBC/SS-1240 | 1.0-4.0 | 27.0 | 15.0 | 14.9 | 20.0 | 1.7 | 38.0 |
