当前位置：首页>产品展示

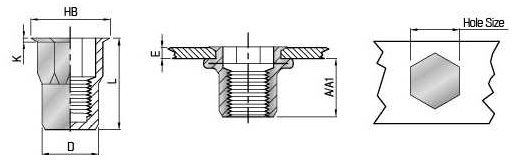

小头内外半六角不锈钢（盲孔）
| UNIT(单位) | :mm | R=Reduce/ HH=Head Half/ H=Hex/ C=Qose/ SS=Stainless steel | ||||||
| ,纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | 3 | Hole Size 40.1 0 | D 40.07 -0.1 | HB | K ±0.15 | L ±0.30 |
| M3 | RHH-HHBC/SS-0315 | 0.5-1.5 | 10.5 | 5.0 | 4.9 | 5.8 | 0.5 | 15.0 |
| M4 | RHH-HHBC/SS-0420 | 0.5-2.0 | 11.5 | 6.0 | 5.9 | 7.0 | 0.5 | 16.0 |
| M5 | RHH-HHBC/SS-0525 | 0.5-2.5 | 13.5 | 7.0 | 6.9 | 8.0 | 0.6 | 18.0 |
| M6 | RHH-HHBC/SS-0630 | 0.5-3.0 | 16.5 | 9.0 | 8.9 | 10.0 | 0.6 | 23.0 |
| M8 | RHH-HHBC/SS-0835 | 1.0-3.5 | 20.0 | 11.0 | 10.9 | 12.0 | 0.7 | 26.0 |
| M10 | RHH-HHBC/SS-1040 | 1.0-4.0 | 23.0 | 13.0 | 12.9 | 14.5* | 0.8 | 33.0 |
| M12 | RHH-HHBC/SS-1240 | 1.0-4.0 | 25.0 | 15.0 | 14.9 | 17.0 | 1.0 | 37.0 |
