当前位置：首页>产品展示

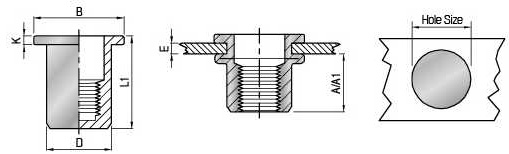

平头条纹不锈钢（盲孔）
| UNIT(单位) | :mm |
|
F=FlaV H=Head7 K=Knurled/ B=Body/ C=Close/ SS=Stainless steel | |||||
| ■纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | 3 | Hole Size +0.1 0 | D +0.07 -0.1 | B | K ±0.15 | L ±0.30 |
| M3 | FH-KBC/SS-0315 | 0.5-1.5 | 10.5 | 5.0 | 4.9 | 5.4 | 0.5 | 15.0 |
| M4 | FH-KBC/SS-0420 | 0.5-2.0 | 11.8 | 6.0 | 5.9 | 9.0 | 0.8 | 16.0 |
| M5 | FH-KBC/SS-0525 | 0.5-2.5 | 13.0 | 7.0 | 6.9 | 10.0 | 1.0 | 18.5 |
| M6 | FH-KBC/SS-0630 | 0.5-3.0 | 13.5 | 9.2 | 8.9 | 12.3 | 1.3 | 23.0 |
| M8 | FH-KBC/SS-0835 | 1.0-3.5 | 15.0 | 11.0 | 10.9 | 14.5 | 1.5 | 27.0 |
| M10 | FH-KBC/SS-1040 | 1.0-4.0 | 19.2 | 13.0 | 12.9 | 17.0 | 1.6 | 33.5 |
| M12 | FH-KBC/SS-1240 | 1.0-4.0 | 24.0 | 15.0 | 14.9 | 20.0 | 2.0 | 38.0 |
