小头条纹不锈钢

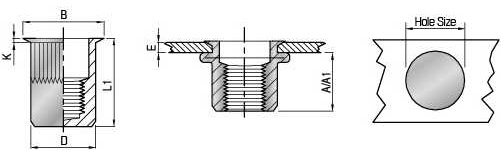

| UNIT(单位) | :mm | R=Reduce/ H=Head/ K=KnuriedZ B=Body /SS=Stainless steel I | ||||||
| ,纹 Thread | 编号 P/N | T(GRIP RANGE) MIN MAX | 3 | Hole Size +0.1 0 | D +0.07 -0.1 | B | K ±0.15 | L ±0.30 |
| M4 | RH-KB/SS-0420 | 0.5-2.0 | 6.5 | 6.0 | 5.9 | 7.0 | 0.5 | 10.5 |
| M5 | RH-KB/SS-0520 | 0.5-2.0 | 7.0 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| M6 | RH-KB/SS-0625 | 052.5 | 87 | 9.0 | 8.9 | 10.0 | 0.6 | 14.0 |
| M8 | RH-KB/SS-0830 | 0.5-3.0 | 10.5 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 |
| M10 | RH-KB/SS-1040 | 1.0-4.0 | 10.7 | 13.0 | 12.9 | 14.0 | 0.7 | 17.7 |
| M12 | RH-KB/SS-1230 | 1.0-3.0 | 14.0 | 16.0 | 14.9 | 16.2 | 0.9 | 22.0 |
